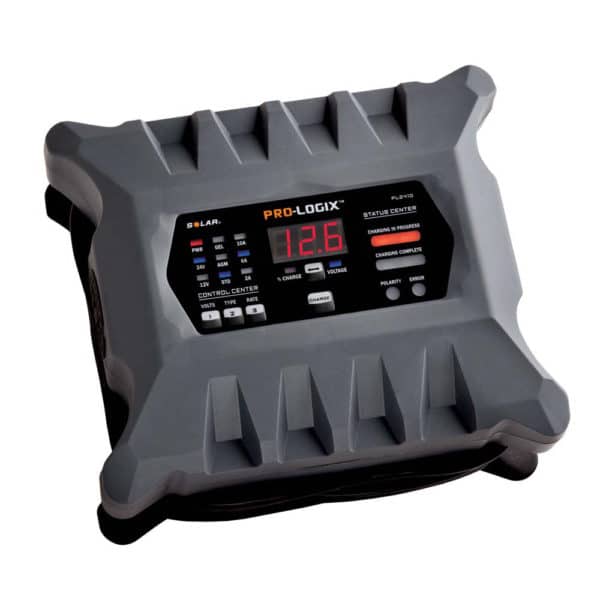

Model Number: PL2410

10/6/2 Amp 12/24V Intelligent Battery Charger / Maintainer

The power and precision of PRO-LOGIX in a 24 Volt portable unit. Plus, the PL2410 features 12 Volt operation to add versatility. Combining fully automatic operation and the ability to properly charge multiple battery types, the PRO-LOGIX PL2410 is the perfect charger to meet the needs of today’s and tomorrow’s professional technician. Intelligent, beneficial, safe and versatile – one charger does it all, from fast charging and battery repair to battery maintenance and long term storage charging.

With the ability to properly charge virtually any lead acid battery type, it is the only charger you will need. Flooded, AGM, Gel Cell, Spiral Wound, Marine and Deep Cycle batteries all can be charged right with the PL2310. Like all PRO-LOGIX chargers, it features a forced start mode that enables it to effectively charge even totally dead batteries.

  • 12 and 24 Volt battery charging
  • 10/6/2A charge rates
  • Fully automatic operation
  • Advanced multi-phase charging process
  • Properly charges all battery types
  • Able to charge even zero volts (totally dead) batteries
  • Soft Start Mode for severely depleted batteries
  • Recondition Mode rejuvenates distressed batteries
  • Enhanced maintenance mode for ideal long term storage
  • Temperature compensation for more effective charging
  • Reverse Polarity Protection and Battery Fault Detection
  • Data rich display provides detailed feedback during charging


PL2410 Operator’s Manual

PL2410 Information Sheet

  • Operating Voltage : 12/24V
  • Operational Mode : Automatic
  • Charging Rates : 10/6/2A
  • Charging Phases : 7
  • Enhanced Maintenance Mode : Yes
  • Reverse Polarity Protection : Yes
  • Battery Fault Detection : Yes
  • Battery Recondition Mode : Yes
  • Soft Start Mode : Yes
  • Temperature Compensation : Yes
  • Output Cable Length : 72″
  • Output Cable Gauge : 12 AWG
  • Weight : 4.7 lbs.
  • Warranty : 1 Year Limited
  • UPC : 010271024544
