Model Number: PL3760

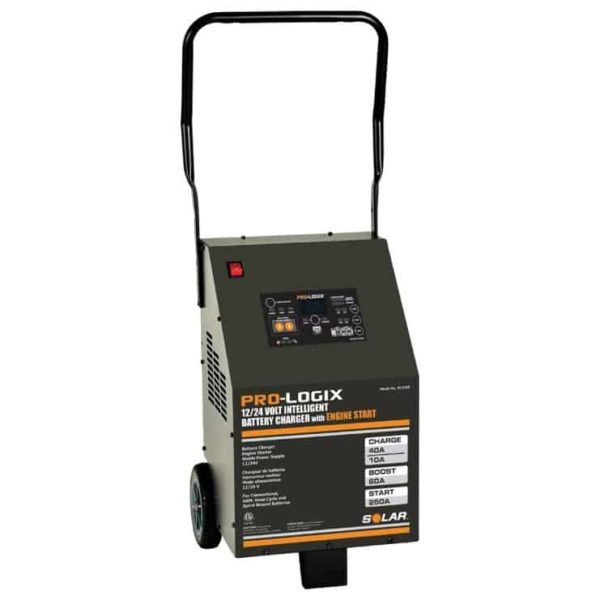

60/40/10/250A 12/24V Intelligent Wheeled Charger w/ Engine Start

Combining fully automatic operation and the ability to properly charge multiple battery types, the PRO-LOGIX PL3760 is the perfect charger to meet the needs of today’s and tomorrow’s professional technician. Intelligent, beneficial, safe and versatile – one charger does it all, from fast charging and battery repair to engine starting assistance and stable power mode for system diagnosis, repair and programming. Plus, with the ability to properly charge virtually any lead acid battery type, it is the only charger you will need. Flooded, AGM, Spiral Wound, Marine and Deep Cycle batteries all can be charged right with the PL3760.

  • 12/24 Volt charging and maintaining
  • 60<>40/40/10A 12V charging rates
  • 20/10A 24V charging rates
  • Fully automatic, multi-phase charging process
  • Charges multiple lead acid battery types
  • Forced start allows charging of totally dead batteries
  • Temperature compensation for beneficial charging
  • 0-60A 12V Stable Power Mode; 13.1-14.9V range
  • 0-20A 24V Stable Power Mode; 26.2-29.8V range
  • 250A 12V Engine Starting Assistance Mode
  • Easy-to-follow, data rich display
  • 2 Year Limited Warranty


  • Operating Voltage : 12/24V
  • Operating Mode : Automatic
  • 12V Charging Rates : 60<>40/40/10A
  • 12V Engine Start Rating : 250A
  • 12V Stable Power Mode: 0-100A, 13.1-14.9V
  • 24V Charging Rates : 20/10A
  • 24V Stable Power Mode: 0-20A, 26.2-29.8V
  • Reverse Polarity Protection : Yes
  • Battery Fault Detection : Yes
  • Battery Recondition Mode : Yes
  • Soft Start Mode : Yes
  • Temperature Compensation : No
  • Output Cable Length : 72″
  • Output Cable Gauge : 6 AWG
  • Weight : 57 lbs.
  • Warranty : Two Year Limited
  • UPC : 010271027064

PL3760 Operator’s Manual

PL3760 Information Sheet

Additional information

Weight57.0 lbs
Dimensions15 × 16 × 23 in
