The Case of the Finicky Flatbed

Here’s a diagnostic case study involving all the critical elements of a great electrical system who-done-it: vehicle started fine when first brought in but wouldn’t start after the repair was completed; aftermarket equipment plays a key role in this mystery; the vehicle owner had tinkered with the system and (bonus) lost some critical components; and, finally, early attempts to resolve the issue actually compounded the problem. In this helpful post from diag.net, Michael from Utah breaks down the problem as he first encountered it and the steps he took to get to the bottom of the problems. As is always the case with his case studies, he shows how a deliberate, logical diagnostic process can result in an efficient, effective repair solution. Enjoy:

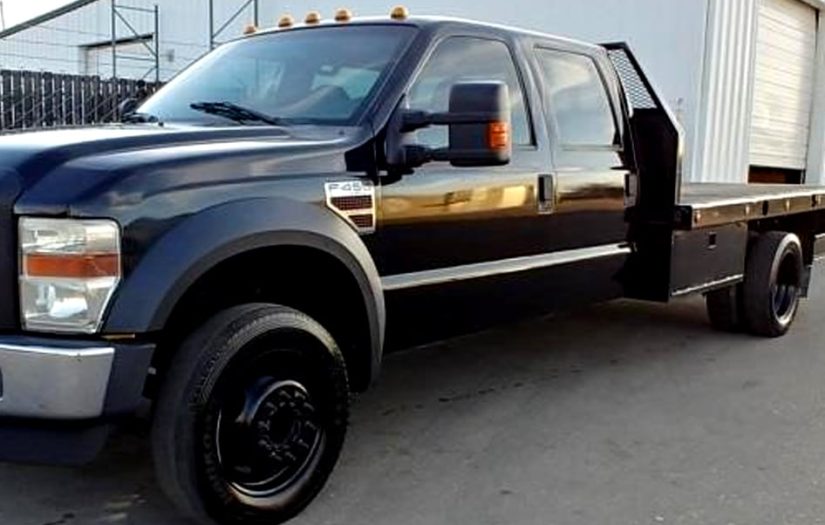

F450 Flabed

Image is for reference only. Courtesy of musickauction.hibid.com

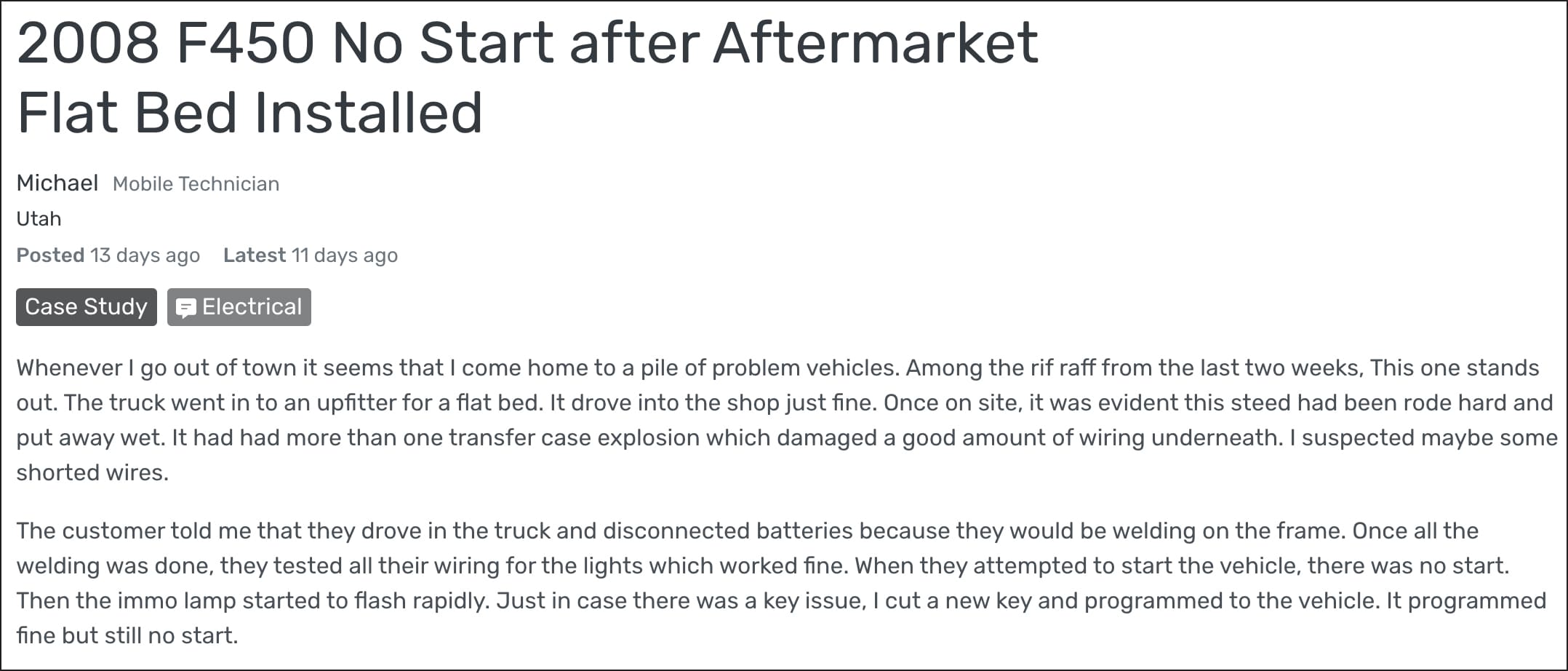

208 F450 article

To see the original post at diag.net click on the above screen shot or click here To access complete forum posts or participate in the discussion requires a membership to the site. There are several membership options available, about which you can learn more here.
